Solar Panel LS620BF
Model: LS620BF
In stock
Price on request
A SOLARA engineer will call back to confirm availability and compatibility with your system.
- Peak Power(Pmax)
- 620W
- Component Efficiency
- 23.0%
- Maximum Power Voltage(Vmp)
- 41.04V
- Maximum Power Current(Imp)
- 14.99A
Solar Panel LS620BF Specification
| Peak Power(Pmax) | 620W |
|---|---|
| Component Efficiency | 23.0% |
| Maximum Power Voltage(Vmp) | 41.04V |
| Maximum Power Current(Imp) | 14.99A |
| Open Circuit(Voc) | 49.06V |
| Short Circuit Current(Isc) | 15.91A |
| Power Tolerance | ± 0-+3% |
| Maximum system Voltage | 1500V |
| Operating Cell Temperature | 43 ± 2°C |
| Maximum Series Fuse Rating | 30A |
| Cell Type | 210*105mm N-type Monocrystalline |
| Number of Cells | 132 (6*22) |
| Weight | 33.7kg |
| Dimension | 2382*1134*30mm |
Description
Efficiency

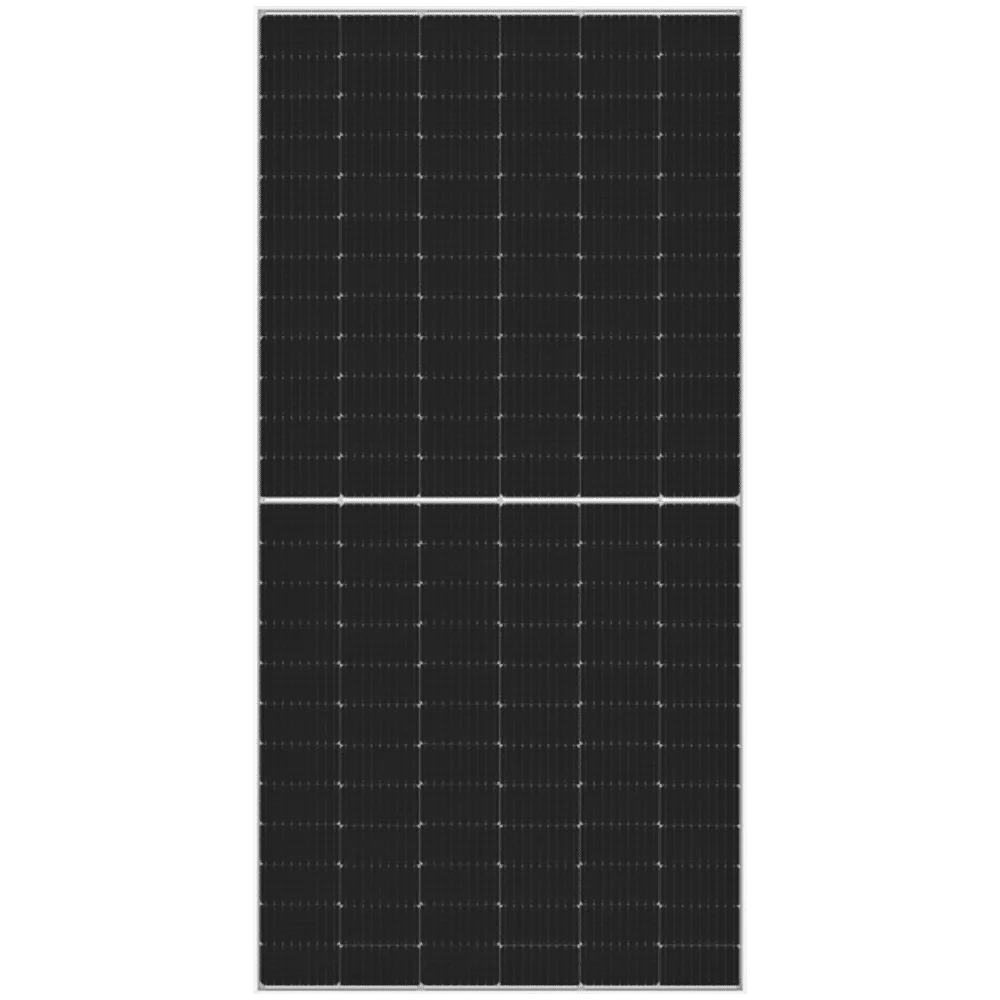

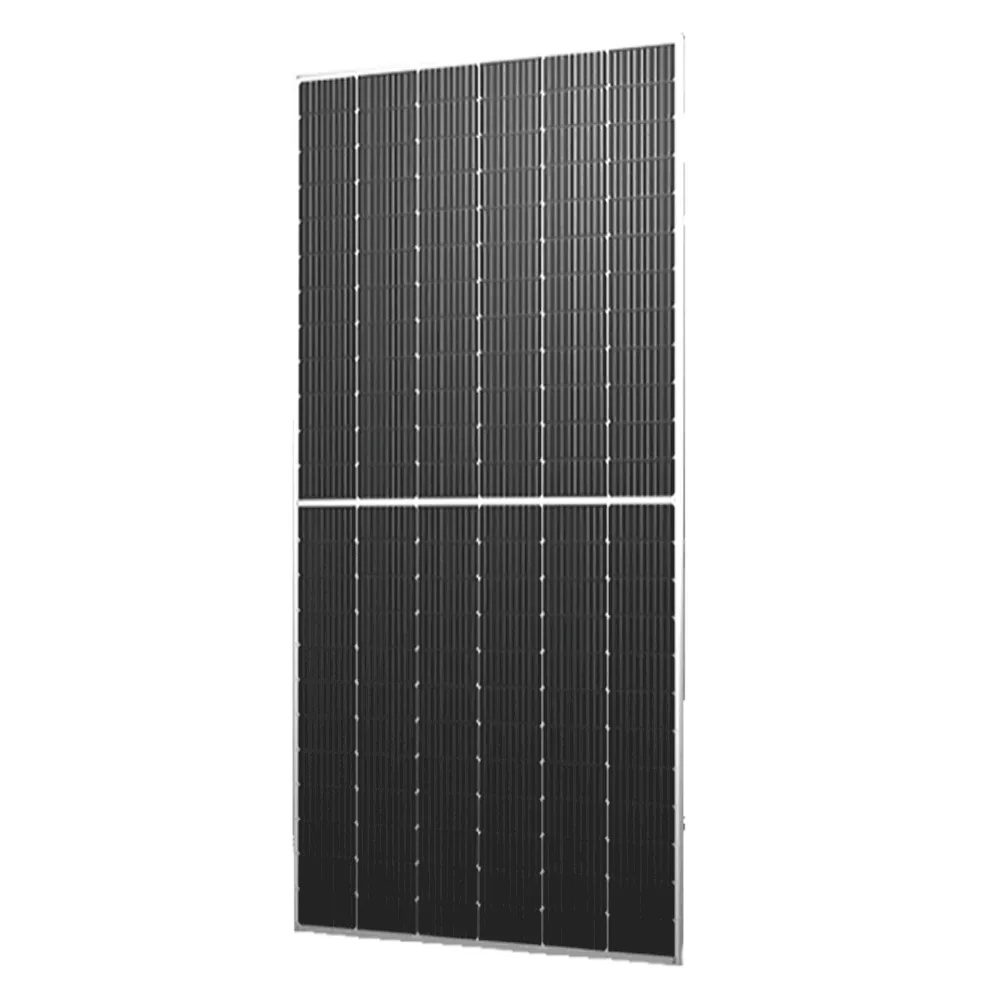

Monocrystalline solar panel with 620W nominal power.
These models of solar systems provide high power efficiency due to their unique design. The solar panel is divided into two parts. Even if one part of the panel is shaded, the other will continue to operate.
Stable guarantee
Presented solar panels are produced in Armenia by experienced professionals at the highest technical production.
Our solar systems are internationally certified with CE, EAC, IEC, UL, PID certifications and pass appropriate quality control at every stage.
SOLARA ensures high quality and uninterrupted product operation by providing a 25-year warranty.
We assure the efficiency of solar panels throughout the entire life cycle.
Reliable partner
The qualified staff of SOLARA is ready to carry out a project of any complexity, on time, and in the whole volume.
Let’s match the equipment to your system
Tell us which product you need and for what system. A SOLARA engineer will confirm availability, compatibility and installation time.
